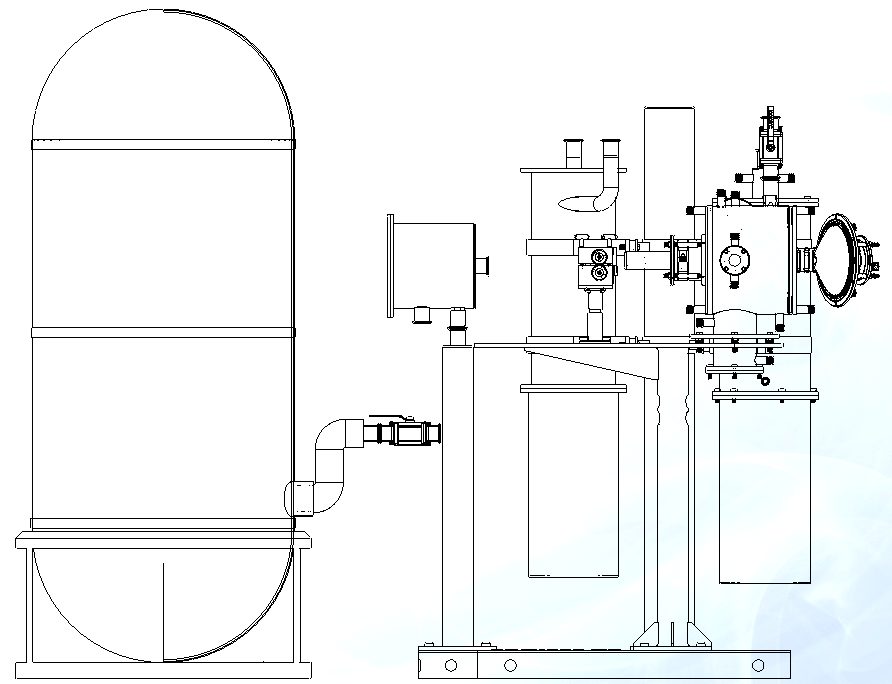

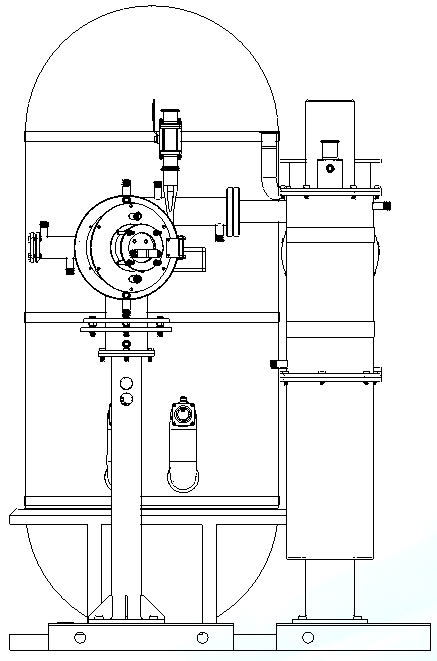

REACTOR FSM-500 VS equipment for the production of fullerene
FSM-500 VS characteristics:
Weight - 480 kg.
Assembled size - 1600x1800x2100 mm.
Electricity power - 27 kW.
Refrigerant volume - 1.3 cmh.
The volume of helium per cycle is 1.2-1.7 liters.
The amount of the product received per shift is 550-650 grams.
Weight - 480 kg.
Assembled size - 1600x1800x2100 mm.
Electricity power - 27 kW.
Refrigerant volume - 1.3 cmh.
The volume of helium per cycle is 1.2-1.7 liters.
The amount of the product received per shift is 550-650 grams.
Machine for the production of carbon powder black FSM-500 VS, designed for cyclic production of carbon black in an inert gas - helium or argon.
In comparison with the FSM-500 equipment, the FSM-500 VS equipment complex has a number of technological improvements, thanks to optimization of gas-dynamic characteristics and optional equipment with a vacuum station.
The standard capacity of the FSM-500 VS unit is 550-650 grams of carbon soot per day.
The period of continuous operation of the installation is 25-27 hours.
The amount of carbon black involved in the production process is 2 operators.
The control panel of the FSM-500 VS complex allows you to control the operation of the plant, both at the stage of preparation of the production process, and during the soot production process itself.
The pumping equipment is supplemented with a vacuum station, which in turn allows for more rapid preparation for work, and to increase the resource capacity of the pumping equipment.
Pumping equipment, has a number of protection elements, if not excluding, then significantly reducing the probability of their failure both in the process of preparing the complex for operation, and during it. Two filters made of high-quality material minimize the ingress of fine carbon black into the working units of the pumps, which in turn increases their reliability and durability.
The cooling system of the complex is provided with an additional pressure increase pump in the refrigerant line-1.8 cubic meters / hour, which eliminates possible overheating of individual circuits of the complex and improves the quality of carbon black production processes. In the basic version, the FSM 500 VS complex is equipped only with an overheating protection system for the main body of the reactor chamber.
Control system arc and quantitative adjustment voltage characteristics, also performed in the base version of the complex; the power supply installation is not mechanical and automatic reverse polarity, but may be included in the composition as an option.
The machine FSM is made of high-quality processed stainless steel with a sheet thickness of 1.8 to 2.2 mm. (depending on the design element), in compliance with the basic conditions for the production of equipment operating under pressure. Each piece of equipment is tested for the average vacuum level and the refrigerant pressure in the cooling systems up to 3.5 Atm.
The technological features of the installation, as an option, suggest the possibility of removing the control panel from the carbon black production area, by installing a video surveillance system and remote control of the electrode supply system.
The pumping equipment is supplemented with a vacuum station, which in turn allows for more rapid preparation for work, and to increase the resource capacity of the pumping equipment.
Pumping equipment, has a number of protection elements, if not excluding, then significantly reducing the probability of their failure both in the process of preparing the complex for operation, and during it. Two filters made of high-quality material minimize the ingress of fine carbon black into the working units of the pumps, which in turn increases their reliability and durability.
The cooling system of the complex is provided with an additional pressure increase pump in the refrigerant line-1.8 cubic meters / hour, which eliminates possible overheating of individual circuits of the complex and improves the quality of carbon black production processes. In the basic version, the FSM 500 VS complex is equipped only with an overheating protection system for the main body of the reactor chamber.
Control system arc and quantitative adjustment voltage characteristics, also performed in the base version of the complex; the power supply installation is not mechanical and automatic reverse polarity, but may be included in the composition as an option.
The machine FSM is made of high-quality processed stainless steel with a sheet thickness of 1.8 to 2.2 mm. (depending on the design element), in compliance with the basic conditions for the production of equipment operating under pressure. Each piece of equipment is tested for the average vacuum level and the refrigerant pressure in the cooling systems up to 3.5 Atm.
The technological features of the installation, as an option, suggest the possibility of removing the control panel from the carbon black production area, by installing a video surveillance system and remote control of the electrode supply system.
BRIEF DESCRIPTION OF THE FSM-500 VS MACHINE
Processability
Easy maintenance
Reliability
Product quality
Production Speed
Easy maintenance
Reliability
Product quality
Production Speed
MODEL COMPARISON
The complex for the production of carbon black FSM-500 VS, is completely produced on the basis of FSM-500, which allows you to preserve its main advantages and complement them with a high-performance vacuuming system.
The VS option, in this version, comes in the basic version of the FSM-500 VS installation; this allows you to significantly reduce the time for preparing the installation for launch, as well as simplify the operation of the complex, eliminating unnecessary work stages.
This complex completely repeats the method of operation of the FSM-500.
The minimum number of automation elements, the intuitive control unit of the complex, provided that the basic principles of the technical process of carbon black production are observed, allow you to achieve the desired result in conditions of limited capabilities.
The VS option, in this version, comes in the basic version of the FSM-500 VS installation; this allows you to significantly reduce the time for preparing the installation for launch, as well as simplify the operation of the complex, eliminating unnecessary work stages.
This complex completely repeats the method of operation of the FSM-500.
The minimum number of automation elements, the intuitive control unit of the complex, provided that the basic principles of the technical process of carbon black production are observed, allow you to achieve the desired result in conditions of limited capabilities.
