REACTOR FSM-500
FSM-500 characteristics:
Weight - 400 kg.
Assembled size - 1600x1800x2100 mm.
Electricity power - 25 kW.
Refrigerant volume - 1.3 cmh.
The volume of helium per cycle is 1.2-1.7 liters.
The amount of the product received per shift is 450-550 grams.
Weight - 400 kg.
Assembled size - 1600x1800x2100 mm.
Electricity power - 25 kW.
Refrigerant volume - 1.3 cmh.
The volume of helium per cycle is 1.2-1.7 liters.
The amount of the product received per shift is 450-550 grams.

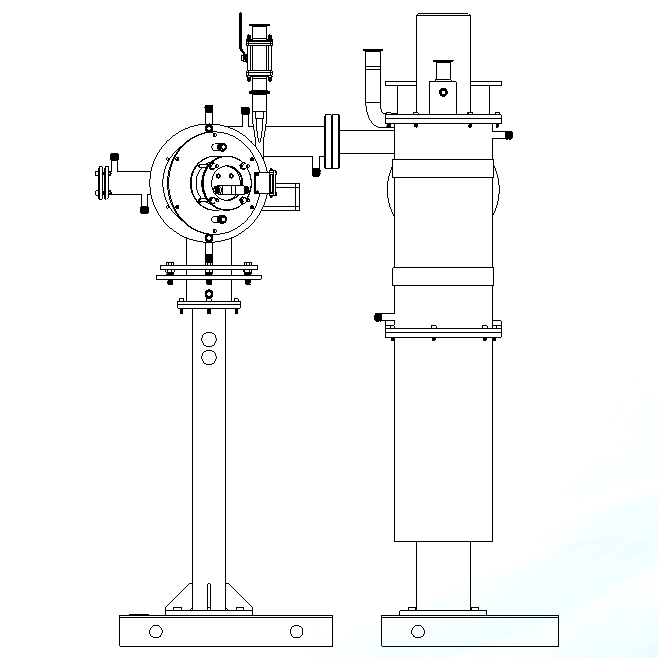

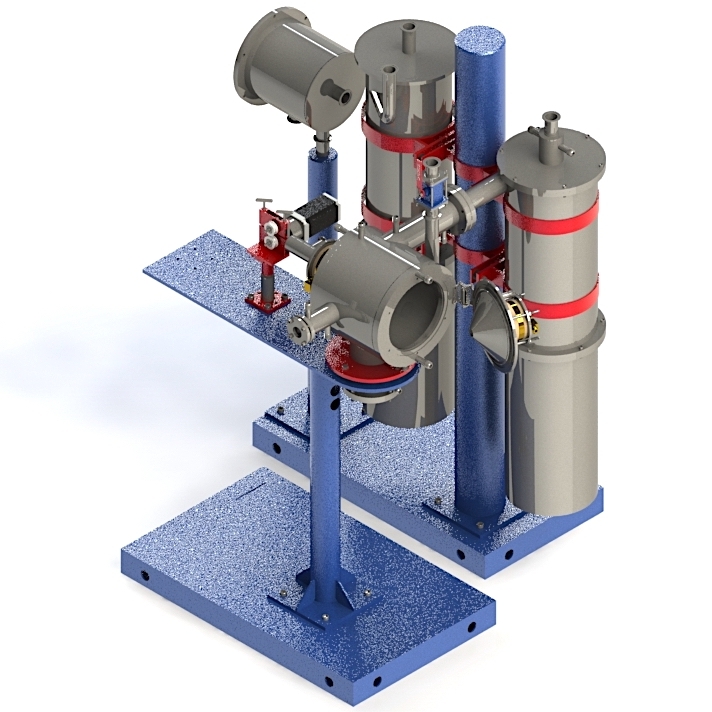

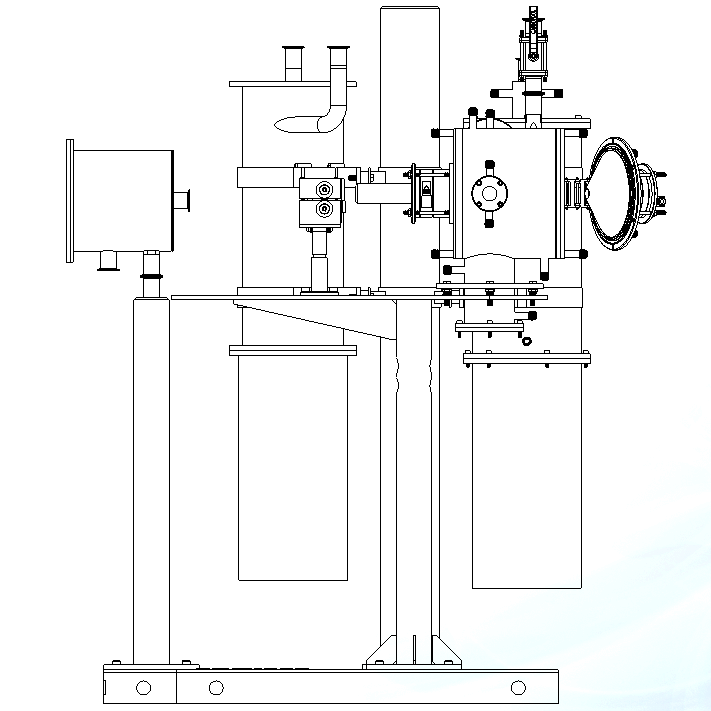

Machine for the production of carbon powder black FSM-500, designed for cyclic production of carbon black in an inert gas - helium or argon.
The standard capacity of the FSM-500 unit is 450-550 grams of carbon soot per day.
The period of continuous operation of the installation is 26-28 hours.
The amount of carbon black involved in the production process is 2 operators.
equipment for the production of fullerene
Pumping equipment, has a range of protection elements, if not excluding, then significantly reducing the probability of their failure both in the process of preparing the complex for operation, and during it. A single filter made of high-quality material minimizes the ingress of fine technical material into the working units of the pumps, which in turn increases their reliability and resource efficiency.
The cooling system of the complex is provided with an additional pressure increase pump in the refrigerant input line, which eliminates possible overheating of individual circuits of the complex and improves the quality of carbon black powder production processes.In the basic version, the FSM-500 complex is equipped only with an overheat protection system for the main body of the reactor chamber.
Control system arc and quantitative adjustment voltage characteristics, also performed in the base version of the complex; the power supply installation is not mechanical or automatic reverse polarity, but may be included in the composition as an option.
In the standard version, the equipment is made of high-quality treated stainless steel with a sheet thickness from 1.8 to 2.2 mm (depending on the structural element) in accordance with the basic conditions of production of equipment working under pressure. A mandatory requirement for the release of equipment is considered to be tested for an average vacuum level and refrigerant pressure in cooling systems up to 5 atm.
Technological features of the equipment allow, as an option, the possibility of transferring the control panel from the carbon black production area by installing a video surveillance system and remote control of the electrode supply system.
The cooling system of the complex is provided with an additional pressure increase pump in the refrigerant input line, which eliminates possible overheating of individual circuits of the complex and improves the quality of carbon black powder production processes.In the basic version, the FSM-500 complex is equipped only with an overheat protection system for the main body of the reactor chamber.
Control system arc and quantitative adjustment voltage characteristics, also performed in the base version of the complex; the power supply installation is not mechanical or automatic reverse polarity, but may be included in the composition as an option.
In the standard version, the equipment is made of high-quality treated stainless steel with a sheet thickness from 1.8 to 2.2 mm (depending on the structural element) in accordance with the basic conditions of production of equipment working under pressure. A mandatory requirement for the release of equipment is considered to be tested for an average vacuum level and refrigerant pressure in cooling systems up to 5 atm.
Technological features of the equipment allow, as an option, the possibility of transferring the control panel from the carbon black production area by installing a video surveillance system and remote control of the electrode supply system.
BRIEF DESCRIPTION OF THE FSM-500 MACHINE
Processability
Easy maintenance
Reliability
Product quality
Production Speed
Easy maintenance
Reliability
Product quality
Production Speed
The technological feature of this complex is its simplicity, both constructive and operational.
The minimum amount of automation elements, the intuitive control unit of the complex, provided that the basic principles of the technical process of carbon black production are observed, allow you to achieve the desired result in conditions of limited capabilities.
The control panel of the FSM-500 complex allows you to control the operation of the plant, both at the stage of preparation of the production process, and during the soot production process itself.
The minimum amount of automation elements, the intuitive control unit of the complex, provided that the basic principles of the technical process of carbon black production are observed, allow you to achieve the desired result in conditions of limited capabilities.
The control panel of the FSM-500 complex allows you to control the operation of the plant, both at the stage of preparation of the production process, and during the soot production process itself.
MODEL COMPARISON
The information provided on this page is not commercial! All data are of a technical and general informational nature!
