For the convenience of connection the pump group, namely:
- forevacuum pump
- booster type pump or a blower
has been developed an assembly unit consisting of vacuum fittings, which allows you to guarantee the quality of the vacuum system of the FSM machine, simplify the maintenance of equipment during operation and configure the equipment complex for individual production conditions.

The mounting block switches off the connecting flanges, which are made for individual dimensions of the working chambers of vacuum pumps and have outlet flanges for connectors FK-40, KF-50 and ISO type flanges.
The mounting block can also be equipped with connecting tees and crosspieces, allowing you to connect additional equipment:
- additional vacuum pumps
- vacuum receivers
- additional contours
- vacuum taps
- vacuum measuring device and so on.

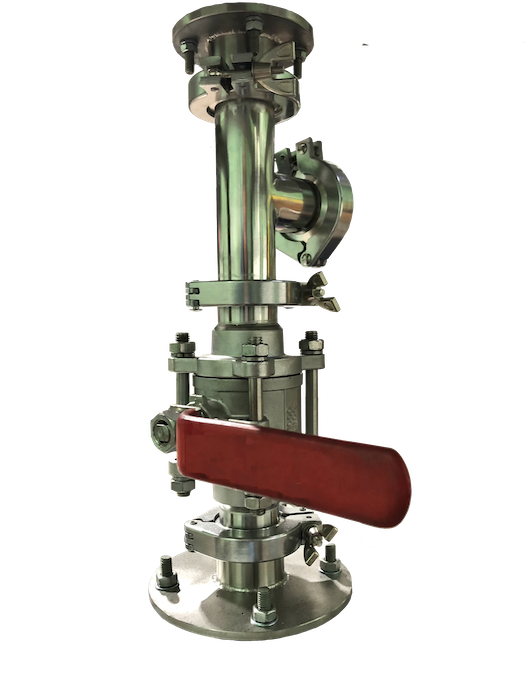

MOUNTING BLOCK OF PUMPING EQUIPMENT
To seal the system, the mounting blocks are equipped with vacuum valves or gate valves with similar types of flange connections of KF or ISO types. These elements can be both mechanical and pneumatic.

ATTENTION!
If the equipment weighing more than 10 kg is connected to the mounting block, additional support posts are required for the structural element located on the second level.
